[DiT-3D or DDPM Code 분석]

Github Link

https://github.com/DiT-3D/DiT-3D/blob/main/train.py

DiT-3D/train.py at main · DiT-3D/DiT-3D

*매우매우 글이 긴 초장문입니다..!

각 코드별로 엄청 상세하게 리뷰했고, 최대한 흐름에 따라서 코드와 수식을 붙여서 설명하였습니다.

*DiT-3D 코드를 기반으로 설명하고 있지만, dataloader를 제외한 나머지 리뷰는 2D 기반의 DDPM or Diffusion Transformer 코드의 흐름으로 이해하셔도 무관합니다.

---

Contents

- 🦎DataLoader Code

- 🐍Model Training Code

- 🐲Model Inference Code

- 🐉Inference Summary

---

🦎DataLoader Code

# train.py line 565
train_dataset, _ = get_dataset(opt.dataroot, opt.npoints, opt.category)

## get_dataset function
def get_dataset(dataroot, npoints,category):
    tr_dataset = ShapeNet15kPointClouds(root_dir=dataroot,
        categories=category.split(','), split='train',
        tr_sample_size=npoints, # 2048
        te_sample_size=npoints,
        scale=1.,
        normalize_per_shape=False,
        normalize_std_per_axis=False,
        random_subsample=True)
    te_dataset = ShapeNet15kPointClouds(root_dir=dataroot,
        categories=category.split(','), split='val',
        tr_sample_size=npoints,
        te_sample_size=npoints,
        scale=1.,
        normalize_per_shape=False,
        normalize_std_per_axis=False,
        all_points_mean=tr_dataset.all_points_mean,
        all_points_std=tr_dataset.all_points_std,
    )
    return tr_dataset, te_dataset

# tr_sample_size = 2048
# te_sample_size = 2048
class ShapeNet15kPointClouds(Uniform15KPC):
    def __init__(self, root_dir="data/ShapeNetCore.v2.PC15k",
                 categories=['airplane'], tr_sample_size=10000, te_sample_size=2048,
                 split='train', scale=1., normalize_per_shape=False,
                 normalize_std_per_axis=False, box_per_shape=False,
                 random_subsample=False,
                 all_points_mean=None, all_points_std=None,
                 use_mask=False):
        self.root_dir = root_dir
        self.split = split
        assert self.split in ['train', 'test', 'val']
        self.tr_sample_size = tr_sample_size
        self.te_sample_size = te_sample_size
        self.cates = categories
        if 'all' in categories:
            self.synset_ids = list(cate_to_synsetid.values())
        else:
            self.synset_ids = [cate_to_synsetid[c] for c in self.cates]

        # assert 'v2' in root_dir, "Only supporting v2 right now."
        self.gravity_axis = 1
        self.display_axis_order = [0, 2, 1]

        super(ShapeNet15kPointClouds, self).__init__(
            root_dir, self.synset_ids,
            tr_sample_size=tr_sample_size,
            te_sample_size=te_sample_size,
            split=split, scale=scale,
            normalize_per_shape=normalize_per_shape, box_per_shape=box_per_shape,
            normalize_std_per_axis=normalize_std_per_axis,
            random_subsample=random_subsample,
            all_points_mean=all_points_mean, all_points_std=all_points_std,
            input_dim=3, use_mask=use_mask)

• https://github.com/DiT-3D/DiT-3D/blob/main/datasets/shapenet_data_pc.py#L201
• → ShapeNet15kPointClouds class는 Uniform15KPC class를 상속받음.

class Uniform15KPC(Dataset):
    def __init__(self, root_dir, subdirs, tr_sample_size=10000,
                 te_sample_size=10000, split='train', scale=1.,
                 normalize_per_shape=False, box_per_shape=False,
                 random_subsample=False,
                 normalize_std_per_axis=False,
                 all_points_mean=None, all_points_std=None,
                 input_dim=3, use_mask=False):
        self.root_dir = root_dir
        self.split = split
        self.in_tr_sample_size = tr_sample_size
        self.in_te_sample_size = te_sample_size
        self.subdirs = subdirs
        self.scale = scale
        self.random_subsample = random_subsample
        self.input_dim = input_dim
        self.use_mask = use_mask
        self.box_per_shape = box_per_shape
        if use_mask:
            self.mask_transform = PointCloudMasks(radius=5, elev=5, azim=90)

        self.all_cate_mids = []
        self.cate_idx_lst = []
        self.all_points = []
        for cate_idx, subd in enumerate(self.subdirs):
            # NOTE: [subd] here is synset id
            sub_path = os.path.join(root_dir, subd, self.split)
            if not os.path.isdir(sub_path):
                print("Directory missing : %s" % sub_path)
                continue

            all_mids = []
            for x in os.listdir(sub_path):
                if not x.endswith('.npy'):
                    continue
                all_mids.append(os.path.join(self.split, x[:-len('.npy')]))

            # NOTE: [mid] contains the split: i.e. "train/<mid>" or "val/<mid>" or "test/<mid>"
            for mid in all_mids:
                # obj_fname = os.path.join(sub_path, x)
                obj_fname = os.path.join(root_dir, subd, mid + ".npy")
                try:
                    point_cloud = np.load(obj_fname)  # (15k, 3)

                except:
                    continue

                assert point_cloud.shape[0] == 15000
                self.all_points.append(point_cloud[np.newaxis, ...])
                self.cate_idx_lst.append(cate_idx)
                self.all_cate_mids.append((subd, mid))

        # Shuffle the index deterministically (based on the number of examples)
        self.shuffle_idx = list(range(len(self.all_points)))
        random.Random(38383).shuffle(self.shuffle_idx)
        self.cate_idx_lst = [self.cate_idx_lst[i] for i in self.shuffle_idx]
        self.all_points = [self.all_points[i] for i in self.shuffle_idx]
        self.all_cate_mids = [self.all_cate_mids[i] for i in self.shuffle_idx]

        # Normalization
        self.all_points = np.concatenate(self.all_points)  # (N, 15000, 3)
        self.normalize_per_shape = normalize_per_shape
        self.normalize_std_per_axis = normalize_std_per_axis
        if all_points_mean is not None and all_points_std is not None:  # using loaded dataset stats
            self.all_points_mean = all_points_mean
            self.all_points_std = all_points_std
        elif self.normalize_per_shape:  # per shape normalization
            B, N = self.all_points.shape[:2]
            self.all_points_mean = self.all_points.mean(axis=1).reshape(B, 1, input_dim)
            if normalize_std_per_axis:
                self.all_points_std = self.all_points.reshape(B, N, -1).std(axis=1).reshape(B, 1, input_dim)
            else:
                self.all_points_std = self.all_points.reshape(B, -1).std(axis=1).reshape(B, 1, 1)
        elif self.box_per_shape:
            B, N = self.all_points.shape[:2]
            self.all_points_mean = self.all_points.min(axis=1).reshape(B, 1, input_dim)

            self.all_points_std = self.all_points.max(axis=1).reshape(B, 1, input_dim) - self.all_points.min(axis=1).reshape(B, 1, input_dim)

        else:  # normalize across the dataset
            self.all_points_mean = self.all_points.reshape(-1, input_dim).mean(axis=0).reshape(1, 1, input_dim)
            if normalize_std_per_axis:
                self.all_points_std = self.all_points.reshape(-1, input_dim).std(axis=0).reshape(1, 1, input_dim)
            else:
                self.all_points_std = self.all_points.reshape(-1).std(axis=0).reshape(1, 1, 1)

        self.all_points = (self.all_points - self.all_points_mean) / self.all_points_std
        if self.box_per_shape:
            self.all_points = self.all_points - 0.5
        self.train_points = self.all_points[:, :10000]
        self.test_points = self.all_points[:, 10000:]

        self.tr_sample_size = min(10000, tr_sample_size)
        self.te_sample_size = min(5000, te_sample_size)
        print("Total number of data:%d" % len(self.train_points))
        print("Min number of points: (train)%d (test)%d"
              % (self.tr_sample_size, self.te_sample_size))
        assert self.scale == 1, "Scale (!= 1) is deprecated"

    def get_pc_stats(self, idx):
        if self.normalize_per_shape or self.box_per_shape:
            m = self.all_points_mean[idx].reshape(1, self.input_dim)
            s = self.all_points_std[idx].reshape(1, -1)
            return m, s

        return self.all_points_mean.reshape(1, -1), self.all_points_std.reshape(1, -1)

    def renormalize(self, mean, std):
        self.all_points = self.all_points * self.all_points_std + self.all_points_mean
        self.all_points_mean = mean
        self.all_points_std = std
        self.all_points = (self.all_points - self.all_points_mean) / self.all_points_std
        self.train_points = self.all_points[:, :10000]
        self.test_points = self.all_points[:, 10000:]

    def __len__(self):
        return len(self.train_points)

    def __getitem__(self, idx):
        tr_out = self.train_points[idx]
        if self.random_subsample:
            tr_idxs = np.random.choice(tr_out.shape[0], self.tr_sample_size)
        else:
            tr_idxs = np.arange(self.tr_sample_size)
        tr_out = torch.from_numpy(tr_out[tr_idxs, :]).float()

        te_out = self.test_points[idx]
        if self.random_subsample:
            te_idxs = np.random.choice(te_out.shape[0], self.te_sample_size)
        else:
            te_idxs = np.arange(self.te_sample_size)
        te_out = torch.from_numpy(te_out[te_idxs, :]).float()

        m, s = self.get_pc_stats(idx)
        cate_idx = self.cate_idx_lst[idx]
        sid, mid = self.all_cate_mids[idx]

        out = {
            'idx': idx,
            'train_points': tr_out,
            'test_points': te_out,
            'mean': m, 'std': s, 'cate_idx': cate_idx,
            'sid': sid, 'mid': mid
        }

        if self.use_mask:
            # masked = torch.from_numpy(self.mask_transform(self.all_points[idx]))
            # ss = min(masked.shape[0], self.in_tr_sample_size//2)
            # masked = masked[:ss]
            #
            # tr_mask = torch.ones_like(masked)
            # masked = torch.cat([masked, torch.zeros(self.in_tr_sample_size - ss, 3)],dim=0)#F.pad(masked, (self.in_tr_sample_size-masked.shape[0], 0), "constant", 0)
            #
            # tr_mask =  torch.cat([tr_mask, torch.zeros(self.in_tr_sample_size- ss, 3)],dim=0)#F.pad(tr_mask, (self.in_tr_sample_size-tr_mask.shape[0], 0), "constant", 0)
            # out['train_points_masked'] = masked
            # out['train_masks'] = tr_mask
            tr_mask = self.mask_transform(tr_out)
            out['train_masks'] = tr_mask

        return out

• PointFlow 논문에 근거하여 pre-processing을 진행하고 있음.
  • self.all_points ⇒ (N, 15000, 3)
  • (1) Normalization: Points axis를 기준으로, mean과 std를 계산하여 아래와 같이 적용

  self.all_points = (self.all_points - self.all_points_mean) / self.all_points_std


  • (2) Training과 Testing할 때 2048개의 points를 random하게 sampling함.

   def __getitem__(self, idx):
      tr_out = self.train_points[idx]
      if self.random_subsample: # True임.
          tr_idxs = np.random.choice(tr_out.shape[0], self.tr_sample_size)
      else:
          tr_idxs = np.arange(self.tr_sample_size)
      tr_out = torch.from_numpy(tr_out[tr_idxs, :]).float()

      te_out = self.test_points[idx]
      if self.random_subsample:
          te_idxs = np.random.choice(te_out.shape[0], self.te_sample_size)
      else:
          te_idxs = np.arange(self.te_sample_size)
      te_out = torch.from_numpy(te_out[te_idxs, :]).float()

      m, s = self.get_pc_stats(idx)
      # m은 mean
      # s는 std값

      out = {
          'idx': idx,
          'train_points': tr_out,
          'test_points': te_out,
          'mean': m, 'std': s, 'cate_idx': cate_idx,
          'sid': sid, 'mid': mid
      }

      return out

의문점 1가지

*근데 train-test를 구분할 때, point를 기준으로 하나?

• 처음 본 point cloud 좌표라서 괜찮은건가?

self.train_points = self.all_points[:, :10000]
self.test_points = self.all_points[:, 10000:]

---

🐍 Model Training

# <https://github.com/DiT-3D/DiT-3D/blob/cfcc16b62004d735e935d14e0e8dc2d00a96041d/train.py#L410>
class Model(nn.Module):
    def __init__(self, args, betas, loss_type: str, model_mean_type: str, model_var_type:str):
        super(Model, self).__init__()
        self.diffusion = GaussianDiffusion(betas, loss_type, model_mean_type, model_var_type)

				# Check DiT3D_models_WindAttn
        if args.window_size > 0:
            self.model = DiT3D_models_WindAttn[args.model_type](pretrained=args.use_pretrained,
                                                   input_size=args.voxel_size,
                                                   window_size=args.window_size,
                                                   window_block_indexes=args.window_block_indexes,
                                                   num_classes=args.num_classes
                                                )
        else:
            self.model = DiT3D_models[args.model_type](pretrained=args.use_pretrained,
                                                    input_size=args.voxel_size,
                                                    num_classes=args.num_classes
                                                    )


    def prior_kl(self, x0):
        return self.diffusion._prior_bpd(x0)

    def all_kl(self, x0, y, clip_denoised=True):
        total_bpd_b, vals_bt, prior_bpd_b, mse_bt =  self.diffusion.calc_bpd_loop(self._denoise, x0, y, clip_denoised)

        return {
            'total_bpd_b': total_bpd_b,
            'terms_bpd': vals_bt,
            'prior_bpd_b': prior_bpd_b,
            'mse_bt':mse_bt
        }

    def _denoise(self, data, t, y):
        B, D, N= data.shape
        assert data.dtype == torch.float
        assert t.shape == torch.Size([B]) and t.dtype == torch.int64

        out = self.model(data, t, y)

        assert out.shape == torch.Size([B, D, N])
        return out

    def get_loss_iter(self, data, noises=None, y=None):
        B, D, N = data.shape                           # [16, 3, 2048]
        t = torch.randint(0, self.diffusion.num_timesteps, size=(B,), device=data.device)

        if noises is not None:
            noises[t!=0] = torch.randn((t!=0).sum(), *noises.shape[1:]).to(noises)

        losses = self.diffusion.p_losses(
            denoise_fn=self._denoise, data_start=data, t=t, noise=noises, y=y)
        assert losses.shape == t.shape == torch.Size([B])
        return losses

    def gen_samples(self, shape, device, y, noise_fn=torch.randn,
                    clip_denoised=True,
                    keep_running=False):
        return self.diffusion.p_sample_loop(self._denoise, shape=shape, device=device, y=y, noise_fn=noise_fn,
                                            clip_denoised=clip_denoised,
                                            keep_running=keep_running)

    def gen_sample_traj(self, shape, device, y, freq, noise_fn=torch.randn,
                    clip_denoised=True,keep_running=False):
        return self.diffusion.p_sample_loop_trajectory(self._denoise, shape=shape, device=device, y=y, noise_fn=noise_fn, freq=freq,
                                                       clip_denoised=clip_denoised,
                                                       keep_running=keep_running)

    def train(self):
        self.model.train()

    def eval(self):
        self.model.eval()

    def multi_gpu_wrapper(self, f):
        self.model = f(self.model)

• get_loss_iter 함수를 통해서 훈련
  • self.diffusion → GaussianDiffusion class

# p loss 부분 (denoising)
def p_losses(self, denoise_fn, data_start, t, noise=None, y=None):
    """
    Training loss calculation
    """
    B, D, N = data_start.shape
    assert t.shape == torch.Size([B])

    if noise is None:
        noise = torch.randn(data_start.shape, dtype=data_start.dtype, device=data_start.device)
    assert noise.shape == data_start.shape and noise.dtype == data_start.dtype

		# 밑에 함수 있음 (diffusion)
    data_t = self.q_sample(x_start=data_start, t=t, noise=noise)

    if self.loss_type == 'mse':
        # predict the noise instead of x_start. seems to be weighted naturally like SNR
        eps_recon = denoise_fn(data_t, t, y)
        assert data_t.shape == data_start.shape
        assert eps_recon.shape == torch.Size([B, D, N])
        assert eps_recon.shape == data_start.shape
        losses = ((noise - eps_recon)**2).mean(dim=list(range(1, len(data_start.shape))))
    elif self.loss_type == 'kl':
        losses = self._vb_terms_bpd(
            denoise_fn=denoise_fn, data_start=data_start, data_t=data_t, t=t, y=y, clip_denoised=False,
            return_pred_xstart=False)
    else:
        raise NotImplementedError(self.loss_type)

    assert losses.shape == torch.Size([B])
    return losses


# q_sample: noise가 입혀진 x값 추출됨
def q_sample(self, x_start, t, noise=None):
    """
    Diffuse the data (t == 0 means diffused for 1 step)
    """
    if noise is None:
        noise = torch.randn(x_start.shape, device=x_start.device)
    assert noise.shape == x_start.shape

    # 모델 initialization 될 때 만들어진 값 활용
    ## alphas: 1 - beta
    ## self.sqrt_alphas_cumprod: sqrt(t시점까지의 alpha cumprod 연산된 값들)
    ## self.sqrt_one_minus_alphas_cumprod: sqrt(1-cum_alphas)
    #### x_start * self.sqrt_alphas + sqrt(1-alphas) * noises
    #### DDPM의 11번째 수식(?)
    return (
            self._extract(self.sqrt_alphas_cumprod.to(x_start.device), t, x_start.shape) * x_start +
            self._extract(self.sqrt_one_minus_alphas_cumprod.to(x_start.device), t, x_start.shape) * noise
    )

def _extract(a, t, x_shape):
    """
    Extract some coefficients at specified timesteps,
    then reshape to [batch_size, 1, 1, 1, 1, ...] for broadcasting purposes.
    """
    bs, = t.shape
    assert x_shape[0] == bs
    out = torch.gather(a, 0, t)
    assert out.shape == torch.Size([bs])
    return torch.reshape(out, [bs] + ((len(x_shape) - 1) * [1]))

• p_losses → q_sample → p_losses (mse 연산)
  • q_sample로 부터, x input 값을 noise로 입힘.
  • denoise_fn(data_t, t, y)로 들어감
    • Model class의 _denoise function → DiT-3D 블럭 forward로 들어감

q_sample에서 일어나는 일; x0로부터 xt를 생성 (noise를 추가해서)

DiT3D_models_WindAttn = {
    'DiT-XL/2': DiT_XL_2,  'DiT-XL/4': DiT_XL_4,  'DiT-XL/8': DiT_XL_8,
    'DiT-L/2':  DiT_L_2,   'DiT-L/4':  DiT_L_4,   'DiT-L/8':  DiT_L_8,
    'DiT-B/2':  DiT_B_2,   'DiT-B/4':  DiT_B_4,   'DiT-B/8':  DiT_B_8,
    'DiT-S/2':  DiT_S_2,   'DiT-S/4':  DiT_S_4,   'DiT-S/8':  DiT_S_8,
}

def DiT_S_2(pretrained=False, **kwargs):
    return DiT(depth=12, hidden_size=384, patch_size=2, num_heads=6, **kwargs)

• https://github.com/DiT-3D/DiT-3D/blob/main/models/dit3d_window_attn.py
• DiT Class를 return 받음

def forward(self, x, t, y):
    """
    Forward pass of DiT.
    x: (N, C, P) tensor of spatial inputs (point clouds or latent representations of images)
    t: (N,) tensor of diffusion timesteps
    y: (N,) tensor of class labels
    """

    # Voxelization
    features, coords = x, x
    x, voxel_coords = self.voxelization(features, coords)

    x = self.x_embedder(x)
    x = x + self.pos_embed

    t = self.t_embedder(t)
    y = self.y_embedder(y, self.training)
    c = t + y

    for block in self.blocks:
        x = block(x, c)
    x = self.final_layer(x, c)
    x = self.unpatchify_voxels(x)

    # Devoxelization
    x = F.trilinear_devoxelize(x, voxel_coords, self.input_size, self.training)

    return x

• self.voxelization → voxel 형태로 변환
  • Nx3 → VxVxVx3 (default V: 32)
• self.x_embedder: Conv3D block
  • (B, C, X, Y, Z) → (B, E, X, Y, Z)
  • C는 coordinates 3을 나타내는 값
• self.t_embedder: t embedding
  • t값은 batch size 만큼의 정수 형태임

  def timestep_embedding(t, dim, max_period=10000):
      """
      Create sinusoidal timestep embeddings.
      :param t: a 1-D Tensor of N indices, one per batch element.
                        These may be fractional.
      :param dim: the dimension of the output.
      :param max_period: controls the minimum frequency of the embeddings.
      :return: an (N, D) Tensor of positional embeddings.
      """
      # <https://github.com/openai/glide-text2im/blob/main/glide_text2im/nn.py>
      half = dim // 2
      freqs = torch.exp(
          -math.log(max_period) * torch.arange(start=0, end=half, dtype=torch.float32) / half
      ).to(device=t.device)
      args = t[:, None].float() * freqs[None]
      embedding = torch.cat([torch.cos(args), torch.sin(args)], dim=-1)
      if dim % 2:
          embedding = torch.cat([embedding, torch.zeros_like(embedding[:, :1])], dim=-1)
      return embedding

  def forward(self, t):
      t_freq = self.timestep_embedding(t, self.frequency_embedding_size)
      t_emb = self.mlp(t_freq)
      return t_emb


  • 위의 코드를 통해서, sincos 함수 적용 + 2개의 MLP & GeLU layer 통과
• self.y_embedder: y(class) embedding
  • self.embedding_table = nn.Embedding(num_classes + use_cfg_embedding, hidden_size)
• block은 DiTBlock class로 들감

class DiTBlock(nn.Module):
    """
    A DiT block with adaptive layer norm zero (adaLN-Zero) conditioning.
    """
    def __init__(self, hidden_size,
                 num_heads,
                 mlp_ratio=4.0,
                 use_rel_pos=False,
                 rel_pos_zero_init=True,
                 window_size=0,
                 use_residual_block=False,
                 input_size=None, **block_kwargs):
        super().__init__()
        self.norm1 = nn.LayerNorm(hidden_size, elementwise_affine=False, eps=1e-6)
        self.attn = Attention(
            hidden_size,
            num_heads=num_heads,
            qkv_bias=True,
            use_rel_pos=use_rel_pos,
            rel_pos_zero_init=rel_pos_zero_init,
            input_size=input_size if window_size == 0 else (window_size, window_size, window_size),
        )

        self.input_size = input_size

        self.norm2 = nn.LayerNorm(hidden_size, elementwise_affine=False, eps=1e-6)
        mlp_hidden_dim = int(hidden_size * mlp_ratio)
        # approx_gelu = lambda: nn.GELU(approximate="tanh")
        approx_gelu = lambda: nn.GELU() # for torch 1.7.1
        self.mlp = Mlp(in_features=hidden_size, hidden_features=mlp_hidden_dim, act_layer=approx_gelu, drop=0)
        self.adaLN_modulation = nn.Sequential(
            nn.SiLU(),
            nn.Linear(hidden_size, 6 * hidden_size, bias=True)
        )

        self.window_size = window_size

    def forward(self, x, c):
		    # c가 condition
		    # MLP를 통해서 shift와 scale factors를 생성
        shift_msa, scale_msa, gate_msa, shift_mlp, scale_mlp, gate_mlp = self.adaLN_modulation(c).chunk(6, dim=1)

        shortcut = x
        x = self.norm1(x)
        B = x.shape[0]
        x = x.reshape(B, self.input_size[0], self.input_size[1], self.input_size[2], -1)

        # Window partition
        if self.window_size > 0:
            X, Y, Z = x.shape[1], x.shape[2], x.shape[3]
            x, pad_xyz = window_partition(x, self.window_size)

        x = x.reshape(B, self.input_size[0] * self.input_size[1] * self.input_size[2], -1)
        x = modulate(x, shift_msa, scale_msa)
        x = x.reshape(B, self.input_size[0], self.input_size[1], self.input_size[2], -1)

        x = self.attn(x)

        # Reverse window partition
        if self.window_size > 0:
            x = window_unpartition(x, self.window_size, pad_xyz, (X, Y, Z))
        x = x.reshape(B, self.input_size[0] * self.input_size[1] * self.input_size[2], -1)

        x = shortcut + gate_msa.unsqueeze(1) * x
        x = x + gate_mlp.unsqueeze(1) * self.mlp(modulate(self.norm2(x), shift_mlp, scale_mlp))

        return x

• self.adaLN_modulation(c).chunk(6, dim=1)
  • 통해서, scale과 shift factors를 생성
• DiTBlock이 다 끝나면, DiT class에서 final layer로 들어감
  • out_channels: 3이라서, coordinates 형태로 나옴

  • class FinalLayer(nn.Module):
        """
        The final layer of DiT.
        """
        def __init__(self, hidden_size, patch_size, out_channels):
            super().__init__()
            self.norm_final = nn.LayerNorm(hidden_size, elementwise_affine=False, eps=1e-6)
            self.linear = nn.Linear(hidden_size, patch_size * patch_size * patch_size * out_channels, bias=True)
            self.adaLN_modulation = nn.Sequential(
                nn.SiLU(),
                nn.Linear(hidden_size, 2 * hidden_size, bias=True)
            )

        def forward(self, x, c):
            shift, scale = self.adaLN_modulation(c).chunk(2, dim=1)
            x = modulate(self.norm_final(x), shift, scale)
            x = self.linear(x)
            return x # (p, p, p, c)


• Loss 계산은, p_losses 함수에서
  • losses = ((noise - eps_recon)**2).mean(dim=list(range(1, len(data_start.shape))))
  • 위와 같이 계산됨. (noise 정도를 예측; MSE)

Loss functions 수식; 노이즈 간의 mse 연산

---

🐲Model Inference

gen = model.gen_samples(x.shape, gpu, new_y_chain(gpu,y.shape[0],opt.num_classes), clip_denoised=False).detach().cpu()

→ Model class에서 gen_samples 함수를 통해서 들어감

# gen_samples 함수
def gen_samples(self, shape, device, y, noise_fn=torch.randn,
                    clip_denoised=True, # False임
                    keep_running=False):
    # GaussianDiffusion class
    return self.diffusion.p_sample_loop(self._denoise, shape=shape, device=device, y=y, noise_fn=noise_fn,
                                        clip_denoised=clip_denoised,
                                        keep_running=keep_running)

# p_sample_loop 함수
def p_sample_loop(self, denoise_fn, shape, device, y,
                      noise_fn=torch.randn, clip_denoised=True, keep_running=False):
    """
    Generate samples
    keep_running: True if we run 2 x num_timesteps, False if we just run num_timesteps

    """

    assert isinstance(shape, (tuple, list))
    #### noise_fn = torch.randn
    # img_t = 랜덤 노이즈 point cloud
    img_t = noise_fn(size=shape, dtype=torch.float, device=device)

    # keep_running = False
    # self.num_timesteps = 1000
    for t in reversed(range(0, self.num_timesteps if not keep_running else len(self.betas))):
        t_ = torch.empty(shape[0], dtype=torch.int64, device=device).fill_(t)
        img_t = self.p_sample(denoise_fn=denoise_fn, data=img_t,t=t_, noise_fn=noise_fn, y=y,
                              clip_denoised=clip_denoised, return_pred_xstart=False)

    assert img_t.shape == shape
    return img_t

• Sampling할 때, timesteps = 1000으로 설정함.
• p_sample_loop 함수는, p_sample을 timesteps 만큼 반복 수행한 것.

def p_sample(self, denoise_fn, data, t, noise_fn, y, clip_denoised=False, return_pred_xstart=False):
    """
    Sample from the model
    """
    model_mean, _, model_log_variance, pred_xstart = self.p_mean_variance(denoise_fn, data=data, t=t, y=y, clip_denoised=clip_denoised,
                                                             return_pred_xstart=True)
    noise = noise_fn(size=data.shape, dtype=data.dtype, device=data.device)
    assert noise.shape == data.shape
    # no noise when t == 0
    nonzero_mask = torch.reshape(1 - (t == 0).float(), [data.shape[0]] + [1] * (len(data.shape) - 1))

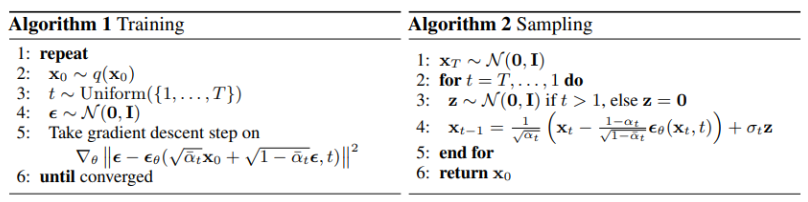

		# Algorithm 2 -> Sampling
    sample = model_mean + nonzero_mask * torch.exp(0.5 * model_log_variance) * noise
    assert sample.shape == pred_xstart.shape
    return (sample, pred_xstart) if return_pred_xstart else sample


# p_mean_variance 함수
def p_mean_variance(self, denoise_fn, data, t, y, clip_denoised: bool, return_pred_xstart: bool):
    model_output = denoise_fn(data, t, y)

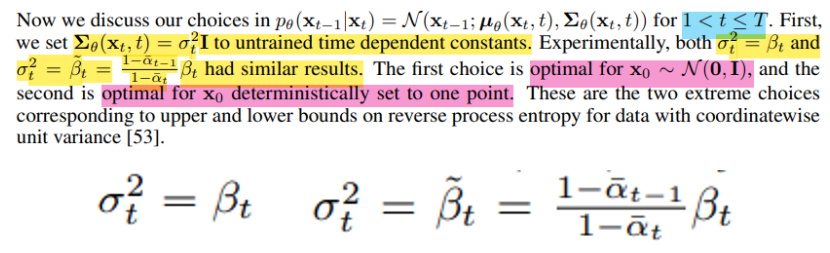

		## self.model_var_type: fixedsmall
    if self.model_var_type in ['fixedsmall', 'fixedlarge']:
        # below: only log_variance is used in the KL computations
        model_variance, model_log_variance = {
            # for fixedlarge, we set the initial (log-)variance like so to get a better decoder log likelihood
            'fixedlarge': (self.betas.to(data.device),
                           torch.log(torch.cat([self.posterior_variance[1:2], self.betas[1:]])).to(data.device)),
            'fixedsmall': (self.posterior_variance.to(data.device), self.posterior_log_variance_clipped.to(data.device)),
        }[self.model_var_type]
        model_variance = self._extract(model_variance, t, data.shape) * torch.ones_like(data)
        model_log_variance = self._extract(model_log_variance, t, data.shape) * torch.ones_like(data)
    else:
        raise NotImplementedError(self.model_var_type)

    if self.model_mean_type == 'eps':
        x_recon = self._predict_xstart_from_eps(data, t=t, eps=model_output)

        if clip_denoised: # False
            x_recon = torch.clamp(x_recon, -.5, .5)

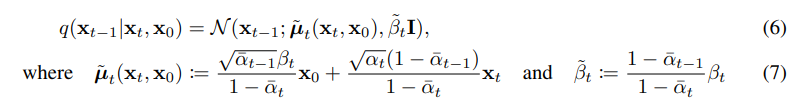

        model_mean, _, _ = self.q_posterior_mean_variance(x_start=x_recon, x_t=data, t=t)
    else:
        raise NotImplementedError(self.loss_type)

    assert model_mean.shape == x_recon.shape == data.shape
    assert model_variance.shape == model_log_variance.shape == data.shape
    if return_pred_xstart: # True임.
        return model_mean, model_variance, model_log_variance, x_recon
    else:
        return model_mean, model_variance, model_log_variance



Posterior_variance 정의 (오른쪽)

• self.model_var_type: fixedsmall
• posterior_variance = betas * (1. - alphas_cumprod_prev) / (1. - alphas_cumprod) # above: equal to 1. / (1. / (1. - alpha_cumprod_tm1) + alpha_t / beta_t) self.posterior_variance = posterior_variance # below: log calculation clipped because the posterior variance is 0 at the beginning of the diffusion chain self.posterior_log_variance_clipped = torch.log(torch.max(posterior_variance, 1e-20 * torch.ones_like(posterior_variance)))
• posterior_variance는 DDPM에서 정의하는 variance 값
  • (좀 더 디테일하게는, beta 값이 fixed 되어있으므로 위와 같이 정의할 수 있음)
• posterior_log_variance_clipped: variance의 log값

def _extract(a, t, x_shape):
    """
    Extract some coefficients at specified timesteps,
    then reshape to [batch_size, 1, 1, 1, 1, ...] for broadcasting purposes.
    """
    bs, = t.shape
    assert x_shape[0] == bs
    out = torch.gather(a, 0, t)
    assert out.shape == torch.Size([bs])
    return torch.reshape(out, [bs] + ((len(x_shape) - 1) * [1]))

• model_variance = self._extract(model_variance, t, data.shape) * torch.ones_like(data)
• t부분에 해당하는 variance 추출하는 부분 (인 것 같음)

X0를 생성하는 방법; x0를 남기고 다 좌변으로 넘김

• self.model_mean_type: eps
• x_recon = self._predict_xstart_from_eps(data, t=t, eps=model_output)
  • data: T 시점의 noised point cloud
  • model_output: T 시점 noised point cloud에 대해서, 입혀진 noise 예측 값

  def _predict_xstart_from_eps(self, x_t, t, eps):
      assert x_t.shape == eps.shape
      return (
              self._extract(self.sqrt_recip_alphas_cumprod.to(x_t.device), t, x_t.shape) * x_t -
              self._extract(self.sqrt_recipm1_alphas_cumprod.to(x_t.device), t, x_t.shape) * eps
      )


  self.sqrt_recip_alphas_cumprod = torch.sqrt(1. / alphas_cumprod).float()
  self.sqrt_recipm1_alphas_cumprod = torch.sqrt(1. / alphas_cumprod - 1).float()


  • _predict_xstart_from_eps: Xt와 noise값을 활용해서 X0를 유추하는 단계 (위의 이미지 수식 참고)
    • Question: sqrt_recipm1_alphas_cumprod의 분모가 alphas_cumprod - 1 인 것이지?
      • 뭔가 아래 수식에서 x0를 남기고 다 좌변으로 넘기는게 맞는 수식인 것 같은데..
      • 아..분모는 그냥 alphas_cumprod이고 (1/alphas_cumprod) - 1 임..ㅋㅋㅋㅋ
• model_mean, _, _ = self.q_posterior_mean_variance(x_start=x_recon, x_t=data, t=t)

• def q_posterior_mean_variance(self, x_start, x_t, t):
      """
      Compute the mean and variance of the diffusion posterior q(x_{t-1} | x_t, x_0)
      """
      assert x_start.shape == x_t.shape
      posterior_mean = (
              self._extract(self.posterior_mean_coef1.to(x_start.device), t, x_t.shape) * x_start +
              self._extract(self.posterior_mean_coef2.to(x_start.device), t, x_t.shape) * x_t
      )
      posterior_variance = self._extract(self.posterior_variance.to(x_start.device), t, x_t.shape)
      posterior_log_variance_clipped = self._extract(self.posterior_log_variance_clipped.to(x_start.device), t, x_t.shape)
      assert (posterior_mean.shape[0] == posterior_variance.shape[0] == posterior_log_variance_clipped.shape[0] ==
              x_start.shape[0])
      return posterior_mean, posterior_variance, posterior_log_variance_clipped

  ###########################
  self.posterior_mean_coef1 = betas * torch.sqrt(alphas_cumprod_prev) / (1. - alphas_cumprod)
  self.posterior_mean_coef2 = (1. - alphas_cumprod_prev) * torch.sqrt(alphas) / (1. - alphas_cumprod)

Encoder의 mean 값 예측

• model_mean = 위의 이미지의 mean 값에 해당하는 부분 (equation 7)
  • x_start = X0에 해당하는값



Algorithm

• 마지막, DDPM에 나오는 algorithm 2 수식에 근거하여서 아래와 같이 t-1번째sampling을 시도함.
  • sample = model_mean + nonzero_mask * torch.exp(0.5 * model_log_variance) * noise

DDPM의 원리가, decoder (denoising) 과정에서 encoder (diffusion)의 평균을 예측하도록 훈련

• → 즉 decoder의 분포는 encoder와 같아야 하므로, encoder의 분포를 기반으로
• 평균+분산*노이즈 형태가 됨

---

🐉Inference 요약

p_sample_loop [img_t: 랜덤 노이즈 point cloud]

→ p_sample [img_t의 노이즈를 T → T-1로 점점 줄여나가는 단계; Algorithm2]

    → p_mean_variance [t시점의 q분포의 Mean과 Variance 계산]

        → _predict_xstart_from_eps [Noise와 X_t를 기반으로, X0를 예측]

        → q_posterior_mean_variance [X0와 X_t를 바탕으로, q분포의 평균을 예측]
